Optical Control – Surface finish

The lenses mounted on our optical control devices are especially adapted (magnification – sharpness) to the drawing dies inspection

The fitting and mounting are made by the Balloffet technicians

The lightning, laying, and easy handling of the die are a guarantee of an easy and efficient use

Stable and robust casting frame

Rotating and reclining support, especially designed for drawing dies analysis

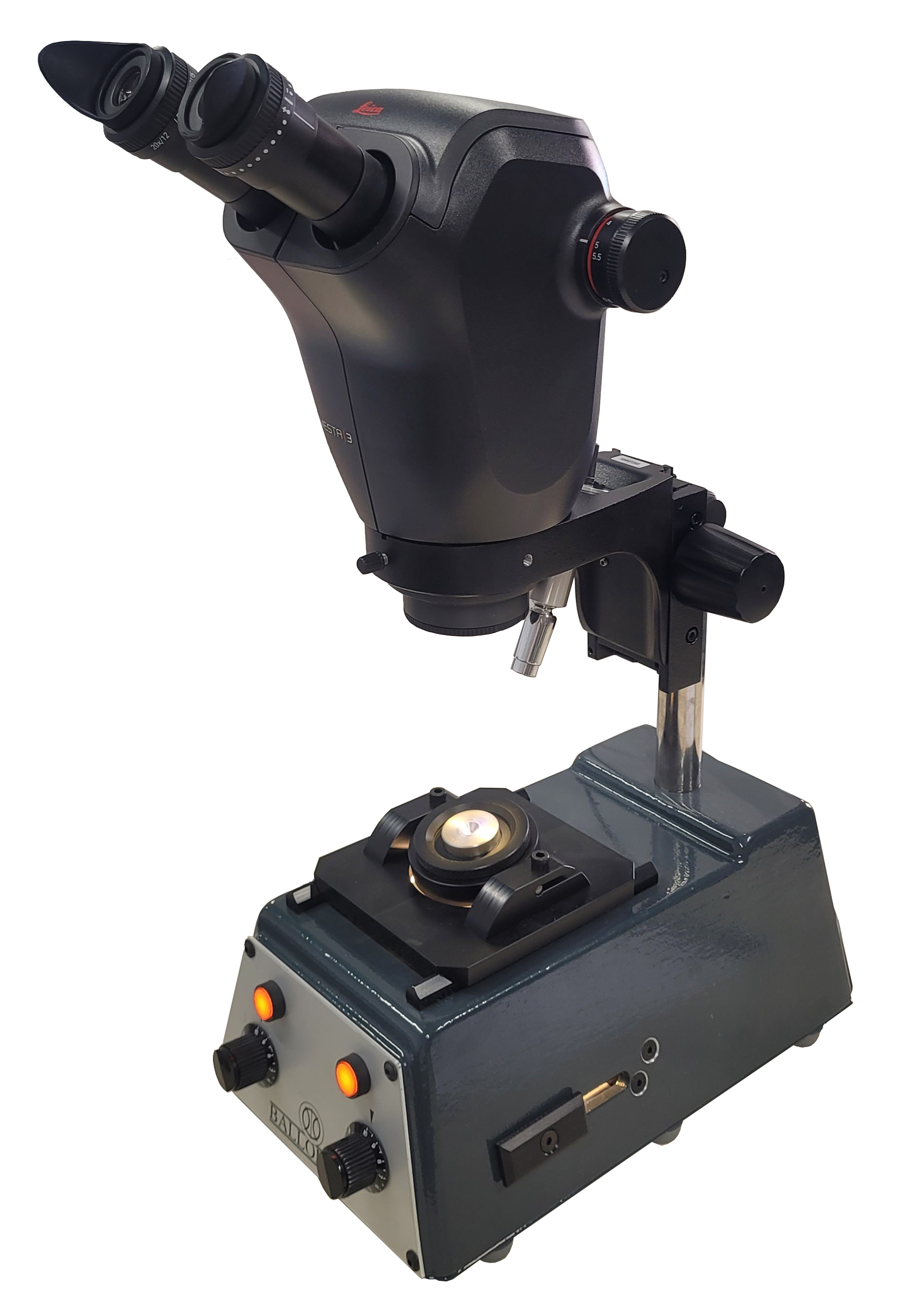

Binocular microscope BB ZOOM

The BB ZOOM is designed for the optical examination of the drawing dies in the range 0.05 – 12mm

  • Magnification up to 80x
  • Supplied with interchangeable lenses for an optimal picture precision whatever the diameter is
  • LEICA optics
  • LED lightning – High luminosity
  • Designed for an industrial use / Robustness – Reliability
  • Adjustable zoom by thumbwheel – Easy to use
Technical Data

Binocular Microscope BN 120

The BN 120 is designed for the optical examination of the drawing dies in the range 0.025 – 2mm

  • Magnification up to 120x
  • Supplied with interchangeable lenses for an optimal picture precision whatever the diameter is
  • LEICA optics
  • LED lightning – High luminosity
  • Designed for an industrial use / Robustness – Reliability
Technical Data

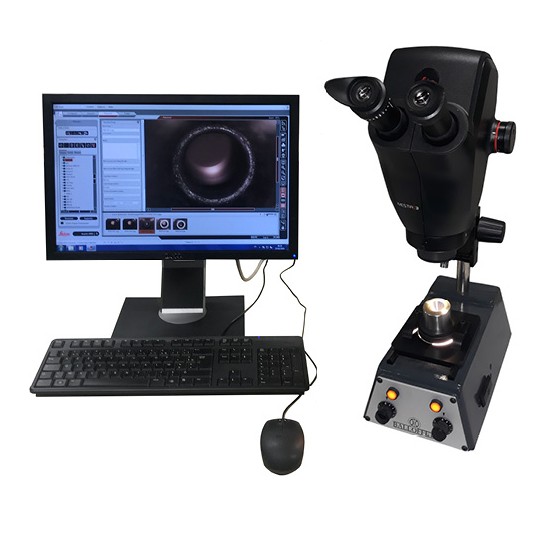

Microcam

The Microcam is designed for checking the internal surface finish of your tungsten carbide or diamond drawing dies on a computer screen

  • Range of diameters 0,2 – 12 mm
  • Especially adapted to the group analysis or trainings
  • Allows you to save your pictures for some technical analysis, records, or shipment to Balloffet for examination
  • Magnification up to 80x on binocular use
  • Magnification up to 40x on screen use
  • Also designed for the surface finish analysis of the wires (wire holders available as an option)
  • Package including a BB Zoom microscope, a camera, and the LAS EZ software, Windows compatible
Technical Data
